Product Description:

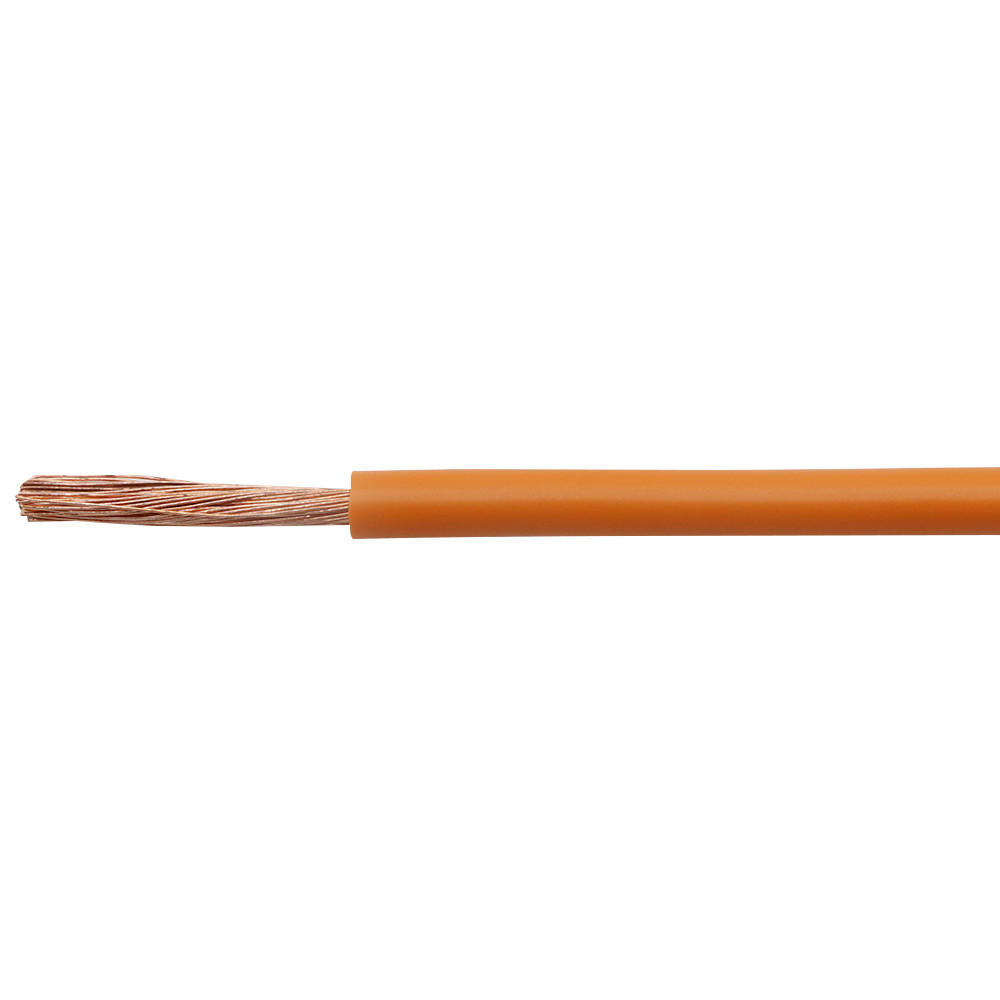

UL1015 18AWG Hookup Wire Flame Retardant UL AWM Wire
-
Rated Voltage: 600V
-
Rated Temperature: 105ºC
-
Insulation Material: PVC
-
Conductor: Tinned or Bare, Stranded or Solid Copper
-
Reference Standard: UL758, UL1581, C22.2 No.210
-
Passes UL VW-1 & CSA FT1 vertical flame test.
-
Uniform insulation thickness of wire to ensure easy stripping and cutting.
-
For internal wiring of electronic and electrical equipment and appliance.
Features:
- Product Name: Wiring Harness Cables
- Color: Black/ White/ Red/ Customized
- Connector: JST/ Molex/ AMP/ Tyco
- Application: Automotive/ Industrial/ Medical/ Home Appliance
- Wire Gauge: AWG
- Cable Core: Single/Multi
Key Features:
- Electrical Cable Loom
- Wire Assembly Set
- Wire Harness Assembly
Technical Parameters:
Wiring Harness Cables Technical Parameters
| Conductor | Insulation | Max. Cond. Resistance at 20°C
(Ω/km) |
| AWG | Construction
(No./mm) | Diameter
(mm) | Thickness
(mm) | Diameter
(mm) |
| 28 | 7/0.127 | 0.38 | 0.76 | 2.00 | 239 |
| 26 | 7/0.16 | 0.48 | 0.76 | 2.08 | 150 |
| 24 | 11/0.16 | 0.61 | 0.76 | 2.20 | 94 |
| 22 | 17/0.16 | 0.76 | 0.80 | 2.30 | 59.4 |
| 20 | 26/0.16 | 0.94 | 0.80 | 2.60 | 36.7 |
| 18 | 16/0.254 | 1.18 | 0.80 | 2.80 | 23.2 |
| 16 | 26/0.254 | 1.50 | 0.76 | 3.10 | 14.6 |
| 14 | 41/0.254 | 1.88 | 0.76 | 3.50 | 8.96 |
| 12 | 65/0.254 | 2.36 | 0.82 | 3.90 | 5.64 |
| 10 | 105/0.254 | 3.00 | 0.80 | 4.61 | 3.55 |
| 8 | 169/0.254 | 3.77 | 1.21 | 6.20 | 2.23 |
| 6 | 7/38/0.254 | 5.41 | 1.52 | 8.45 | 1.40 |
| 4 | 19/37/0.20 | 6.81 | 1.52 | 9.80 | 0.88 |
| 2 | 19/35/0.254 | 8.65 | 1.53 | 11.80 | 0.55 |
| ※The above datasheet is for reference only, please refer to the final specification. |
