Product Description:

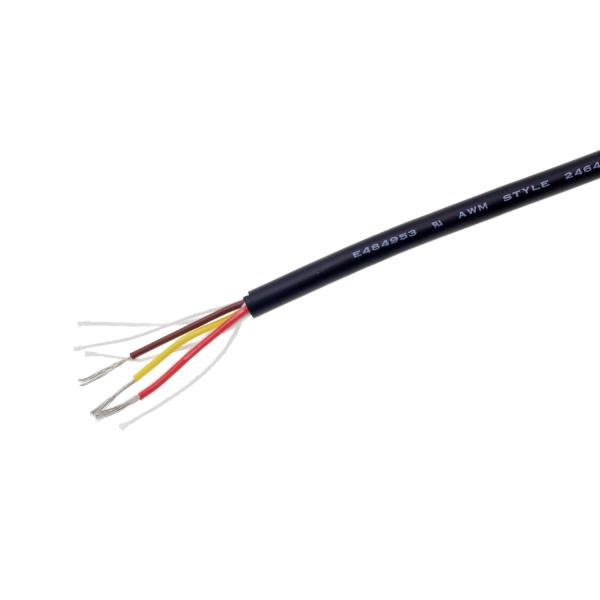

UL2464 Multi Conductor Shielded Cable
① Rated temperature: 80ºC
② Rated voltage: 300V
③ Reference Standard: UL758, UL1581, C22.2 No.210
④ Passes UL VW-1 & CSA FT1 vertical flame test.
⑤ Uniform insulation thickness of wire to ensure easy stripping and cutting.
⑥ For internal wiring of electronic and electrical equipment and appliance.
Technical Parameters:
| Conductor | Insulation | Jacket | Max. Cond Resistance at 20°C
(Ω/km) |
| No. of Cores | AWG | Construction
(No./mm) | Thickness
(mm) | Diameter
(mm) | Diameter
(mm) |
| 3 | 28 | 7/0.127 | 0.26 | 0.90 | 4.00 | 239 |
| 4 | 28 | 7/0.127 | 0.26 | 0.90 | 4.80 | 239 |
| 5 | 28 | 7/0.127 | 0.26 | 0.90 | 5.00 | 239 |
| 6 | 28 | 7/0.127 | 0.26 | 0.90 | 5.00 | 239 |
| 8 | 28 | 7/0.127 | 0.26 | 0.90 | 5.00 | 239 |
| 9 | 26 | 7/0.16 | 0.26 | 1.00 | 6.30 | 150 |
| 10 | 26 | 7/0.16 | 0.26 | 1.00 | 6.60 | 150 |
| 11 | 26 | 7/0.20 | 0.26 | 1.00 | 6.60 | 150 |
| 12 | 28 | 7/0.16 | 0.26 | 0.90 | 6.00 | 239 |
| 15 | 24 | 7/0.127 | 0.26 | 1.12 | 8.00 | 94.2 |
| 18 | 28 | 7/0.127 | 0.26 | 0.90 | 7.40 | 239 |
| 20 | 24 | 7/0.20 | 0.26 | 1.12 | 8.50 | 94.2 |
Packing and Shipping:
Product Name: Single Conductor Wire
Packaging and Shipping
Our Single Conductor Wire is carefully packaged to ensure its safe arrival at your designated location. The packaging materials we use are of high quality and designed to protect the wire from any potential damage during transit.
The wire is typically packaged in reels or spools of various sizes, depending on the length and gauge of the wire. These reels or spools are then placed in strong and durable cardboard boxes, which are sealed with heavy-duty tape to prevent any moisture or external elements from entering.
To further protect the wire during shipping, our packaging also includes cushioning materials such as bubble wrap or foam inserts. This provides an additional layer of protection against any potential impact or rough handling during transportation.
For smaller orders, we use reliable shipping carriers such as FedEx, UPS, or DHL to deliver the products to your desired location. For bulk orders, we work with reputable freight companies to ensure timely and secure delivery.
Upon shipment, we will provide you with a tracking number so you can monitor the status of your order and know exactly when to expect its arrival.
At Single Conductor Wire, we take great care in packaging and shipping our products to ensure they arrive at their destination in perfect condition. We are committed to providing you with the highest quality products and excellent customer service. If you have any questions or concerns about your order, please don't hesitate to contact us.
.
